CarDim
Design and sizing of orientation signs

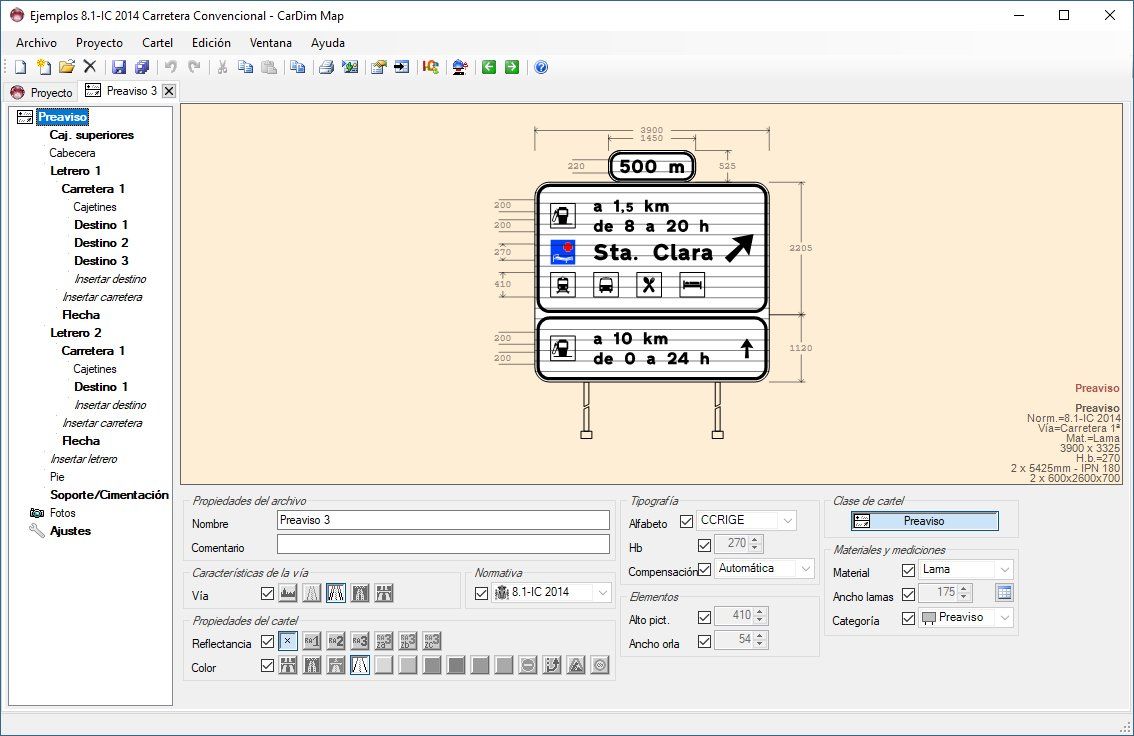

CarDim is an application for the design and sizing of urban and interurban orientation signs. Easy and intuitive to use, it allows you to design all types of posters quickly and efficiently. Since its launch in 1989 CarDim has grown with new improvements and incorporating more regulations and more types of signs to become a standard program in the signage sector endorsed by its more than 120 customers.

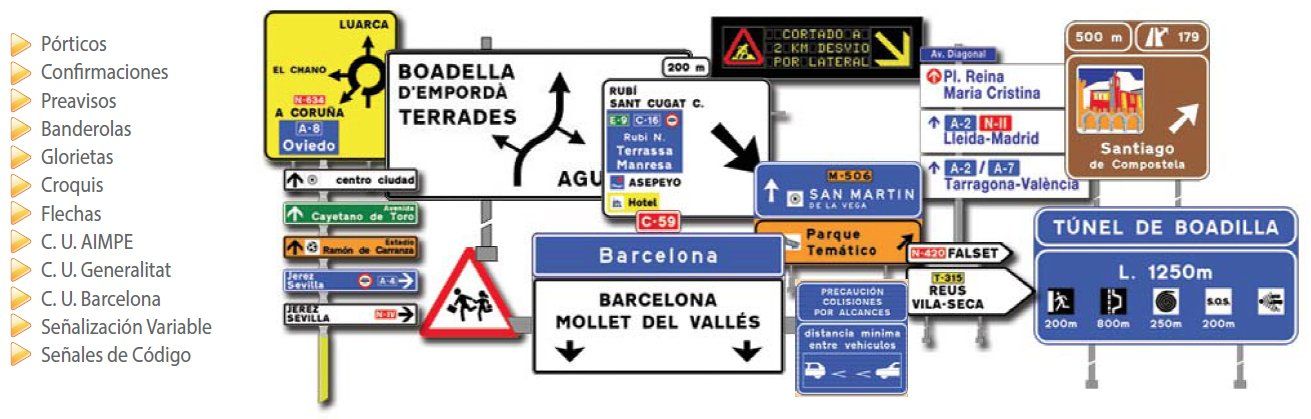

With CarDim you can design different orientation signs:
CarDim allows the user without much signage knowledge to design orientation signs complying with the following regulations:
Main functionalities
photo viewer
It has a tool to count slats from the photographs. With this functionality you can design the poster with its actual measurements. We also have the possibility of superimposing the final design on the photograph to evaluate the result.
Simultaneous design of frames
CarDim allows all the signs of a portico to be designed jointly.
vector pictograms
CarDim directly imports graphics in vector, DXF and SVG formats. In this way, users of the application can design posters with all kinds of pictograms, shields or arrows inside.

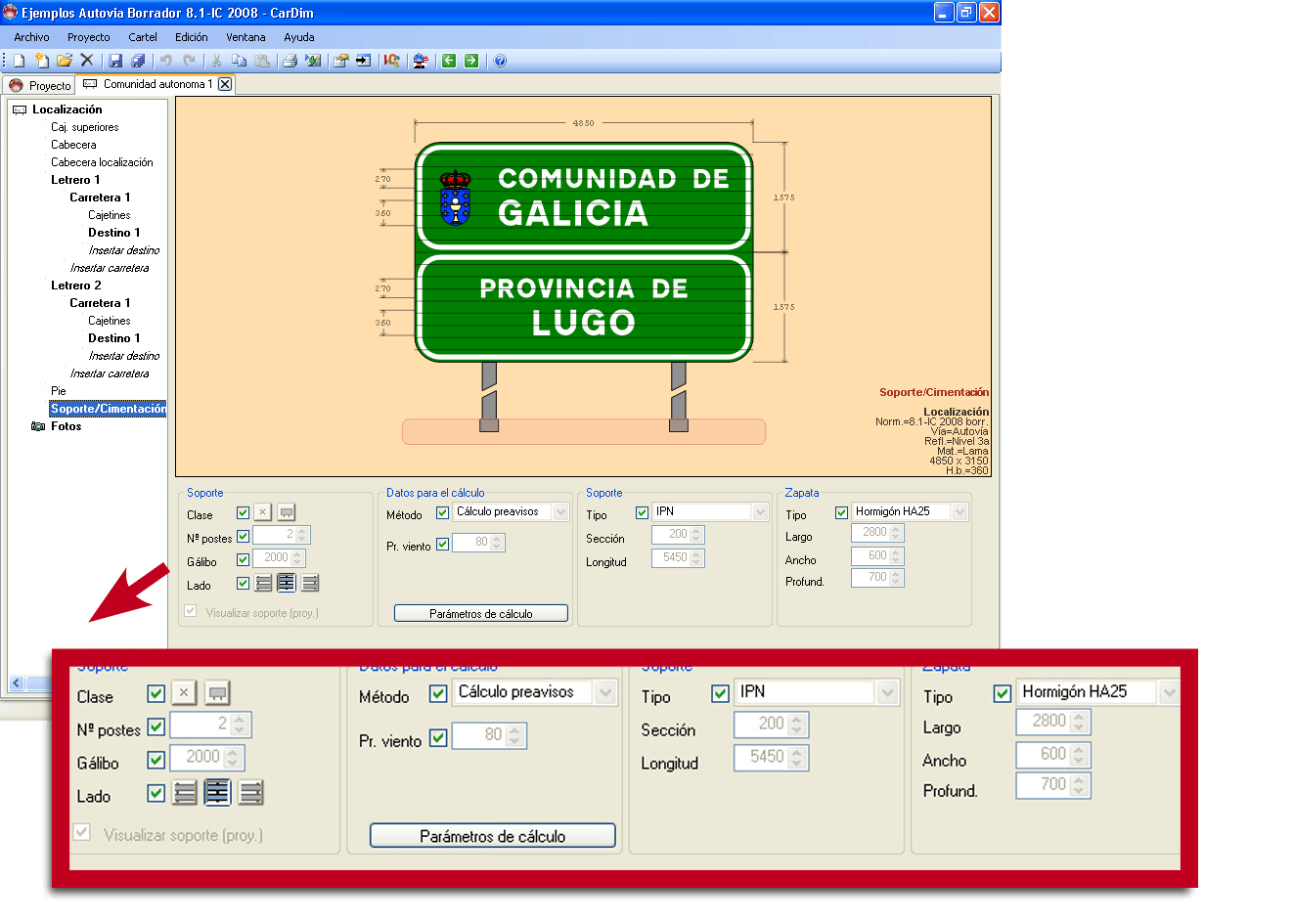

supports and foundations
CarDim has all the necessary options for sizing supports and foundations for side signs. All this calculation can be exported in CSV or PDF format.

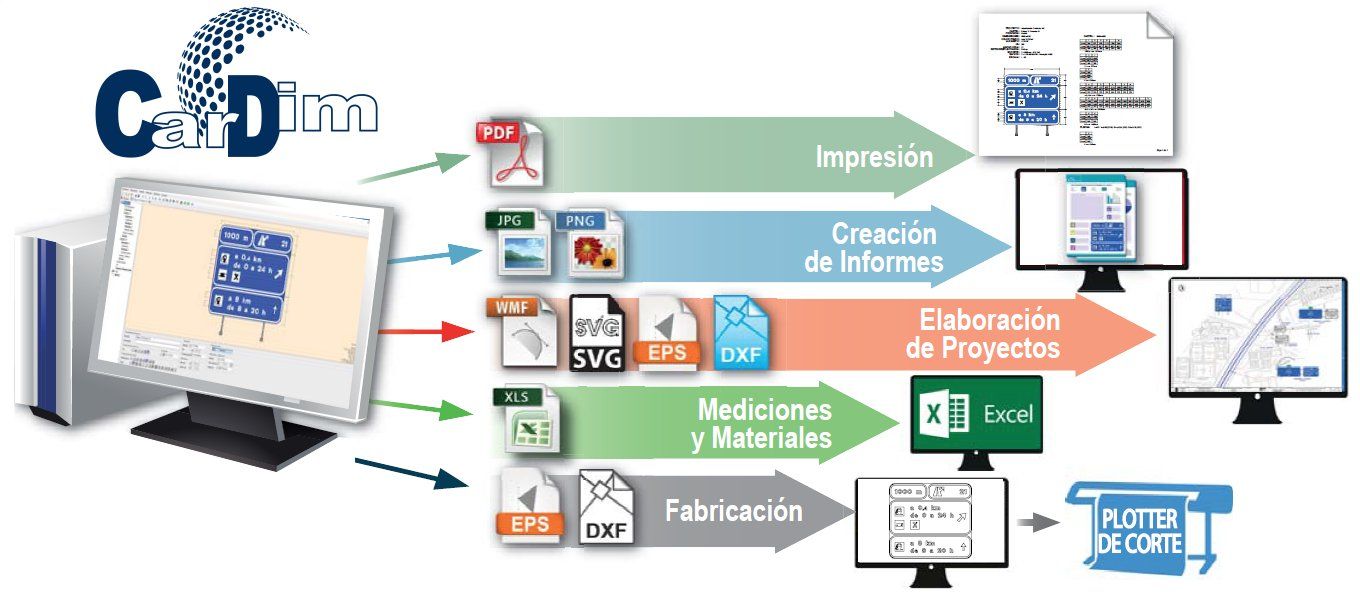

interoperability
CarDim exports its designs to multiple formats, from the vector format compatible with cutting plotters, to measurements in Excel or pdfs with the measurements for its manufacture:
